Product Overview
Aircraft PRM Medical Lifts
Miles Aircraft PRM Medical Lifts are purpose-built to ensure the safe transfer of passengers with reduced mobility to and from aircraft worldwide.

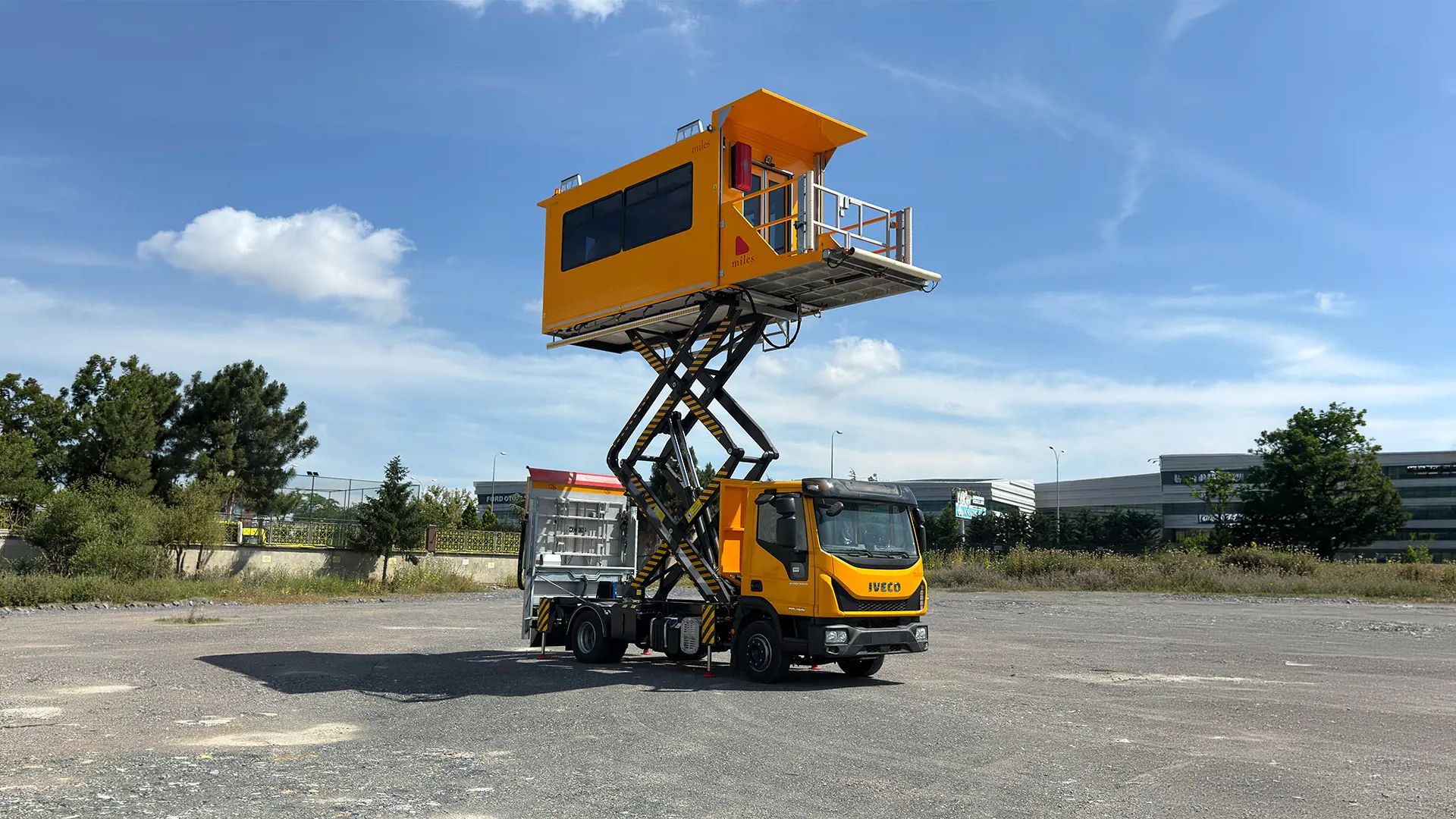

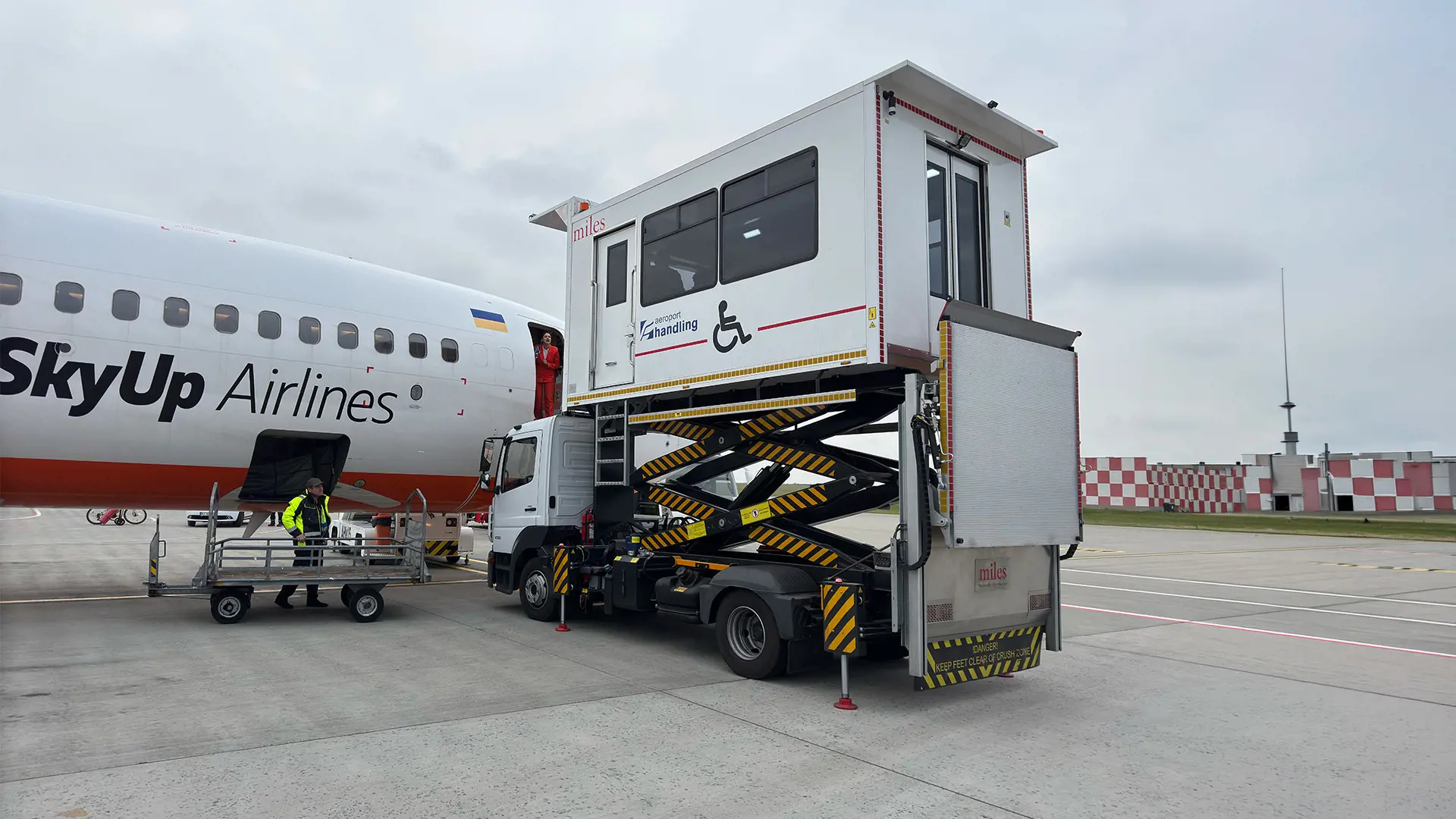

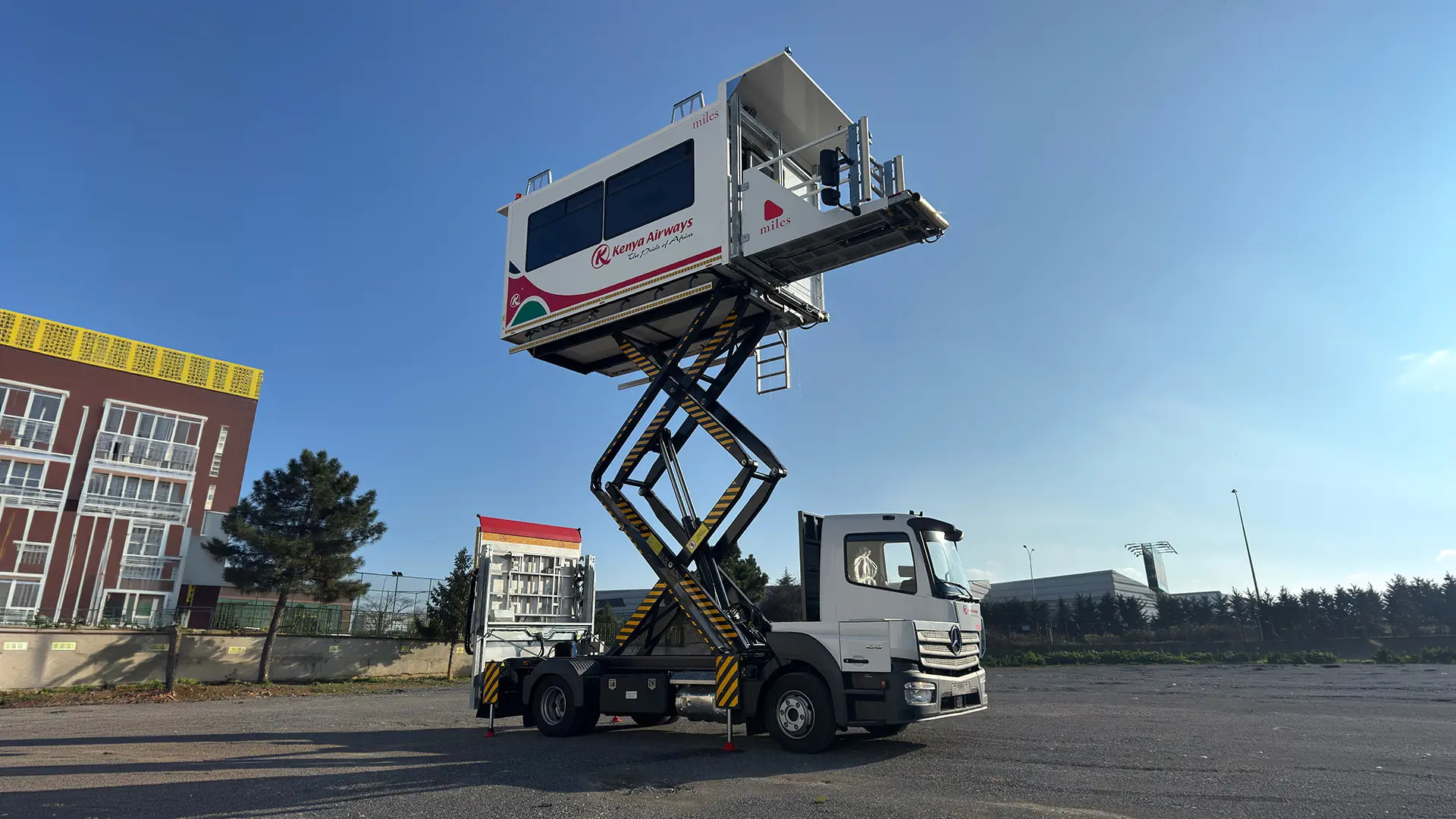

After PRM passengers are received at ground level, the PRM Medical Lift is fully raised, facilitating their comfortable and secure transfer into the aircraft. These lifts are constructed on a truck-mounted chassis with a lifting van body and fully insulated GRP panels, prioritizing safety throughout the process as well as the safety of the PRM.
1
/ 1
Quick Contact
Product Request
Technical Sheet
Core Specifications
| MODEL | Aircraft PRM Medical Lift (Miles 5041) |
| FULL CAB | |
| Type: | Full Size Cab |
| Sill Height: | 2450 mm - 5900 mm |
| HALF CAB | |
| Type: | Half Size Cab |
| Sill Height: | 1400 mm - 5900 mm |
| TECHNICAL SPECIFICATIONS | |
| Chassis: | Standard commercial chassis (MAN, Mercedes-Benz, Iveco, Volvo, etc) |
| Capacity: | 6 wheelchairs, 1 stretcher |
| Platform: | Full-width, half-width, 4-way |
| Scissor Mechanism: | Miles single or double scissors system with four hydraulic chassis stabilizers. |
| Van Body: | Insulated G.R.P panels from 50 mm - 100 mm |
| Tail Lift: | 1000kg (other payload upon request) |
| Electric System: | 24V ECU CAN Bus J1939 |
| Size Options | Small, Medium and Large size available |
| Additional Options: | Available upon request |
