Baggage Trailer

Product Overview

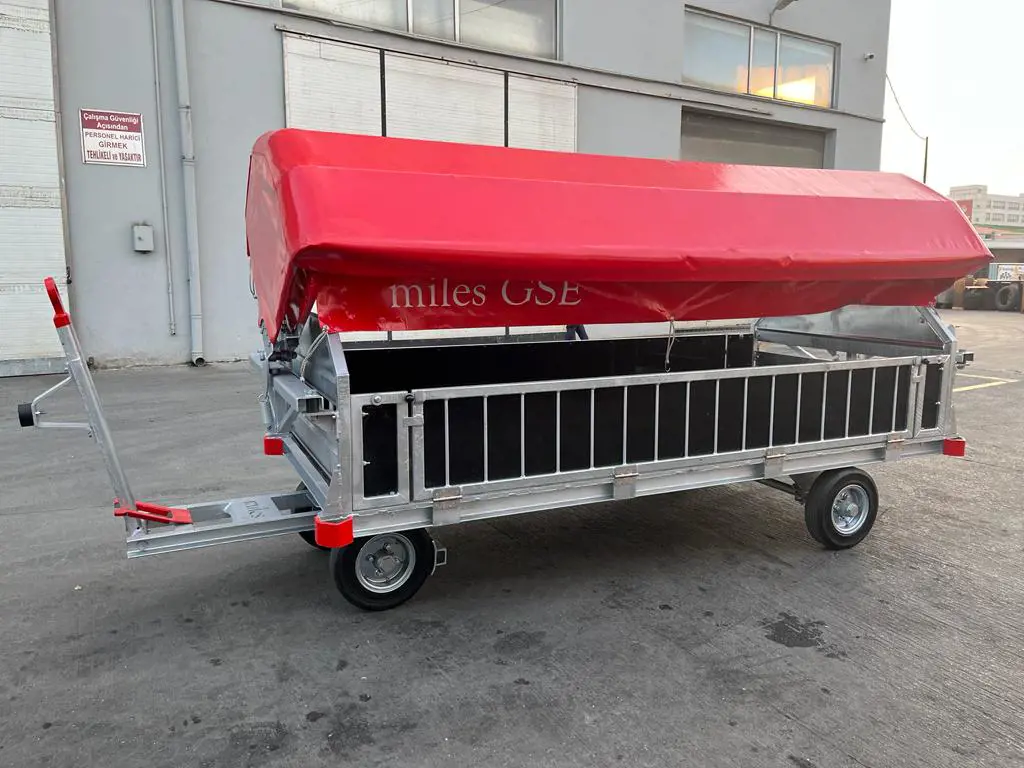

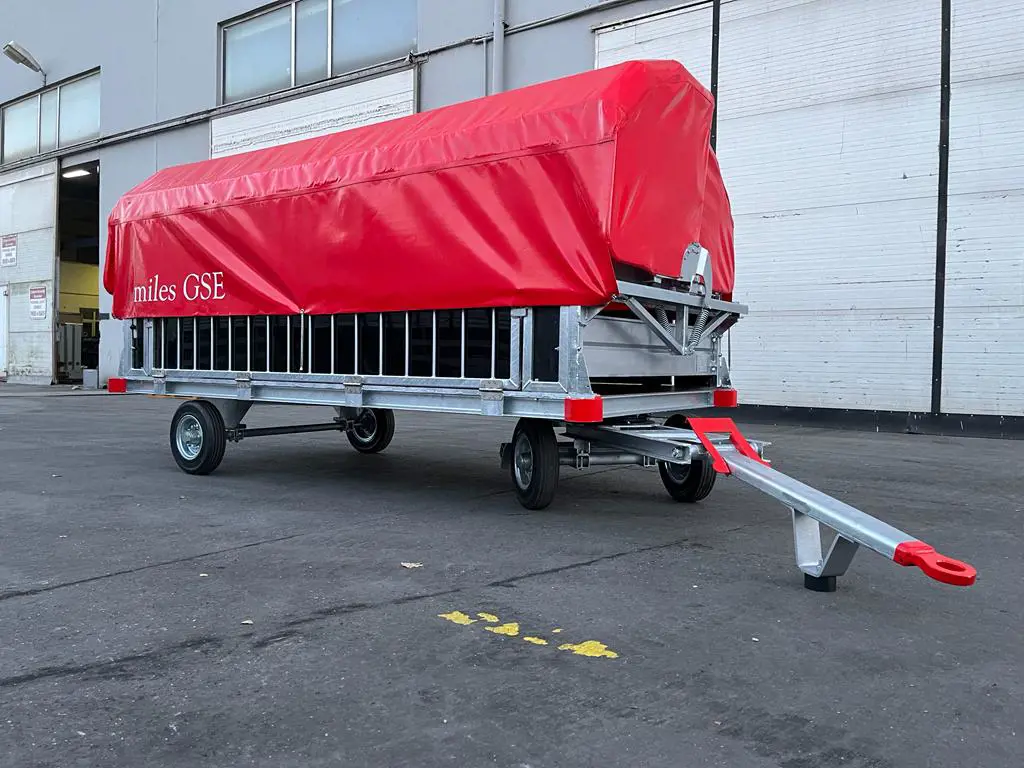

Baggage Trailer

Miles Baggage Trailer can be safely used for transporting baggage with its high internal and external strength. Miles Baggage Trailer is the number one choice of ramp operators due to its strong structure and functional design.

All parts used in the design and production of the Miles Baggage Trailer have been selected in accordance with occupational health and safety principles. Miles Baggage Trailers are manufactured according to AHM, VDE, and IATA standards.

Quick Contact

Product Request

Thank you
Error occurred while sending email. Please try again later.
Technical Sheet

Core Specifications

MODEL Baggage Trailer (Miles 6033)
TECHNICAL SPECIFICATIONS
Platform dimension: 2900x1400 mm
Total length: 4750 mm
Ground clearance: 510 mm
Max. carrying capacity: 1800 kg
Chassis: Hot dip galvanized steel
Wheels: 400x100x8
Wheelbase 2211 mm
Weight: 650 kg
Type: Low Size Cab
Sill Height: 2600 mm - 5900 mm
Capacity: 1000kg - 5000kg
Max. speed: 25 km/h
Drawbar angle: 180°
