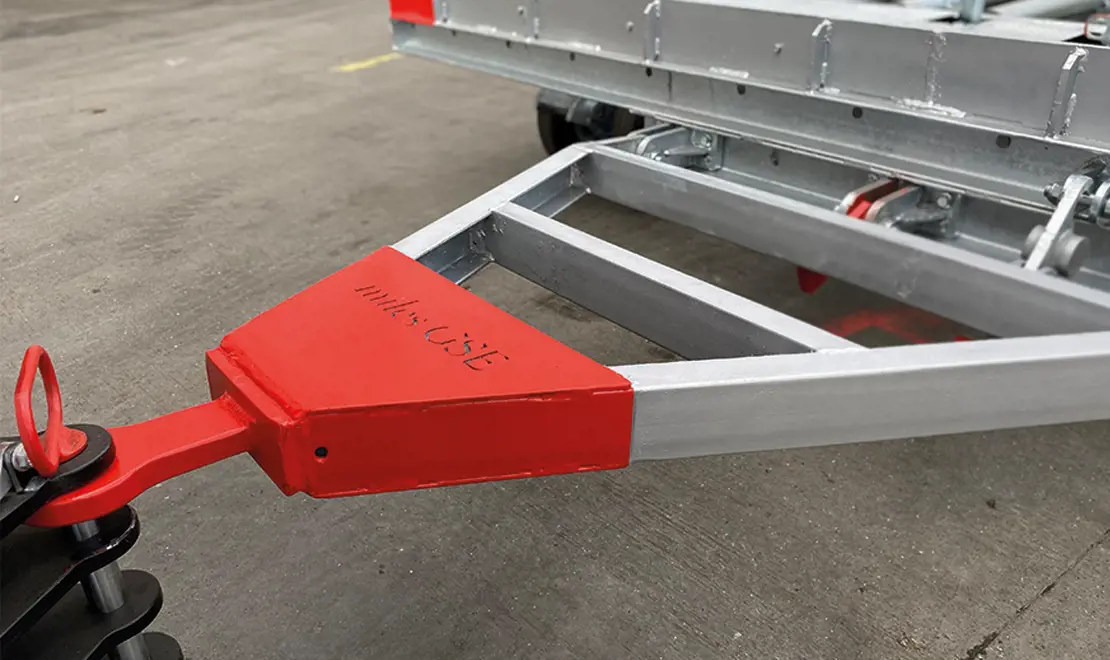

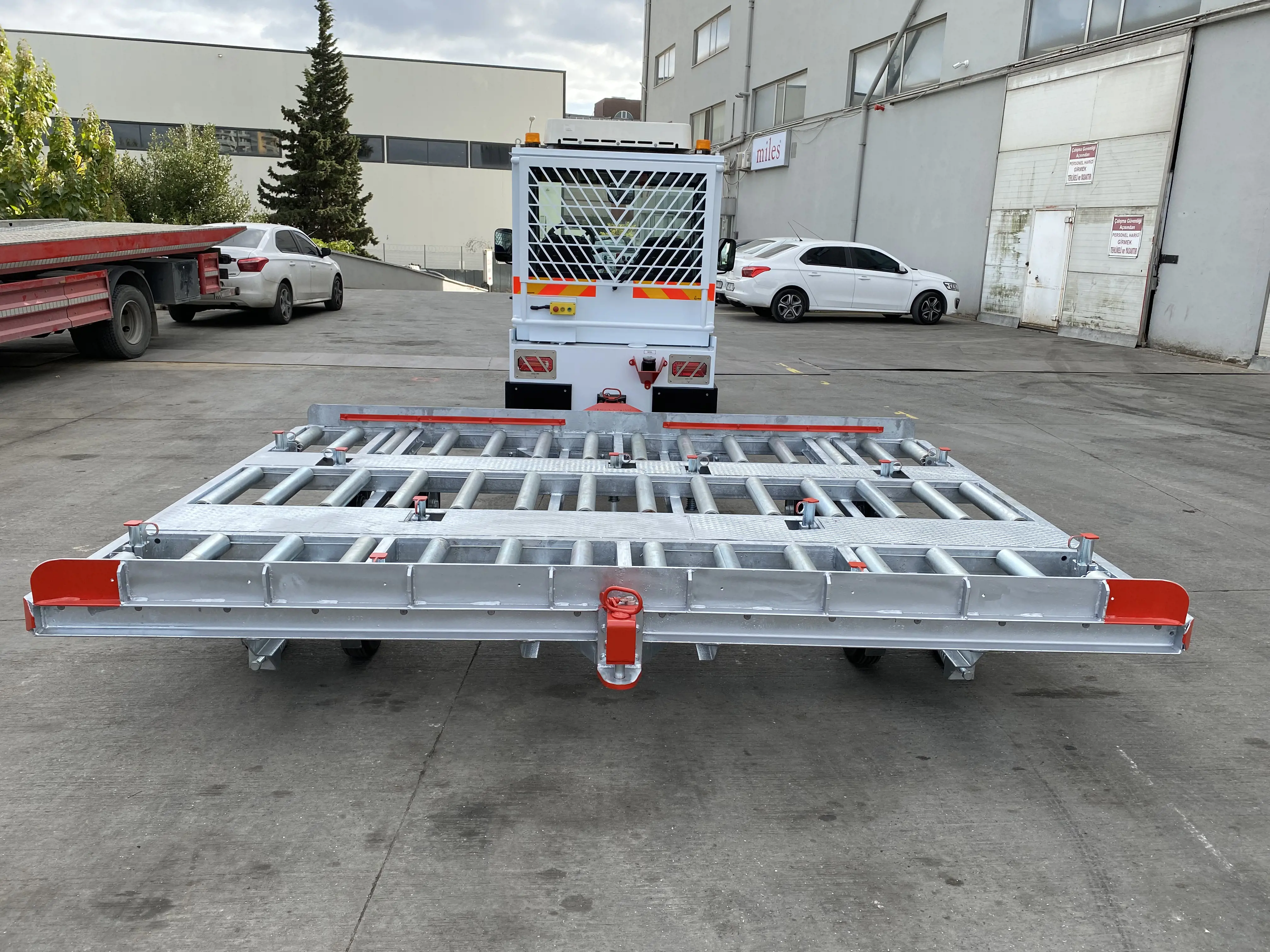

Miles Pallet Dolly can be safely used for transporting containers and pallets with its high internal and external strength. While providing maximum security to the user, it offers time-saving and high performance in the execution of pallet operations.
Miles Pallet Dolly offers superior strength and stability for the safe and efficient transport of both containers and pallets. Its robust internal and external construction provides maximum security for operators, while its high-performance design ensures time-saving operations during pallet handling.
| MODEL | Pallet Dolly 10FT |
| Pallet Dolly 20FT | |
| Pallet Dolly 40FT | |
| (Miles 6035) | |
| TECHNICAL SPECIFICATIONS | |
| Platform dimension: | 2575x3390 mm |
| Container types it can carry: | LD1, LD2, LD3, LD4, LD8 |
| Palet types it can carry: | (P6P/LD39), (P1P/LD9) |
| Total length: | 3980 mm |
| Ground clearance: | 510 mm |
| Max. carrying capacity: | 6800 kg |
| Chassis: | Hot dip galvanized steel |
| Wheels: | 400x100x8 |
| Weight: | 1050 kg |
| Max. speed: | 25 km/h |
| Drawbar angle: | 90° |
| Weight: | 650 kg |
| Max. speed: | 25 km/h |
| Drawbar angle: | 90° |
